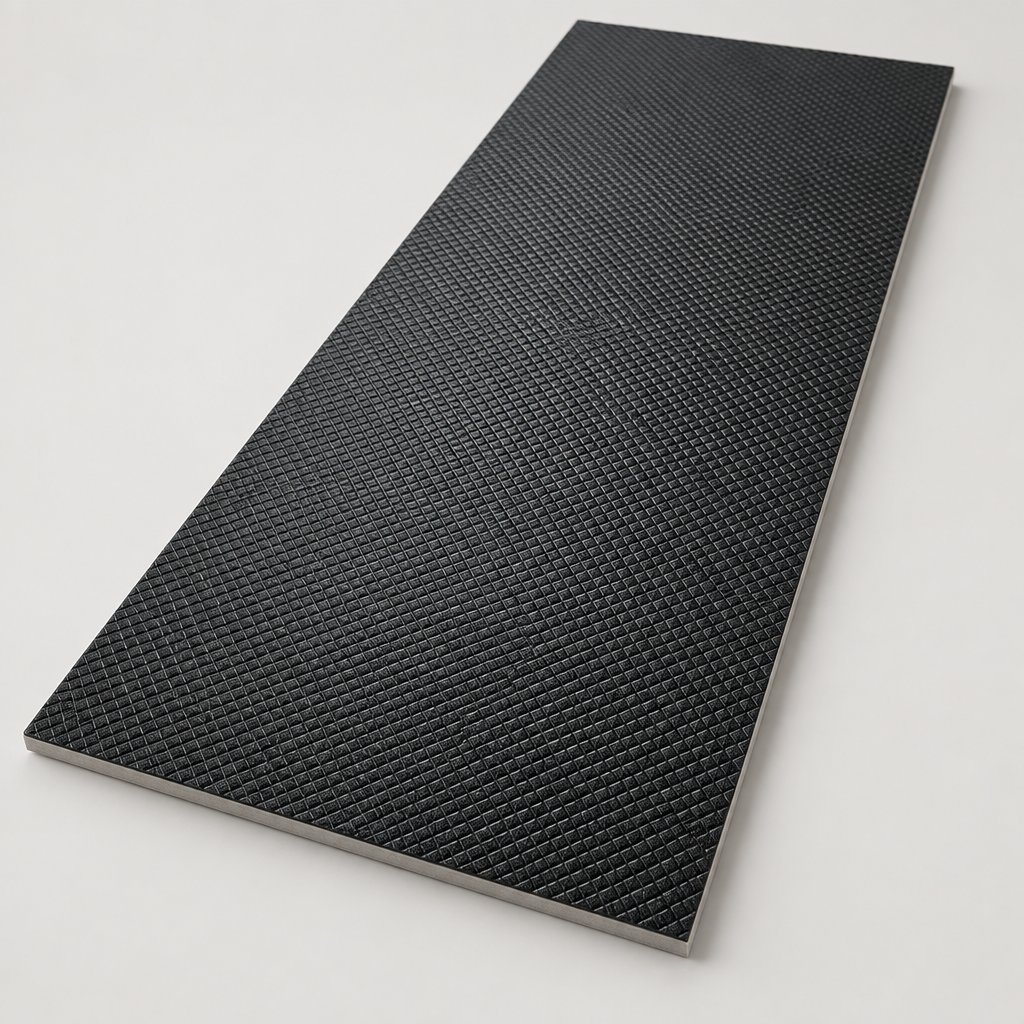

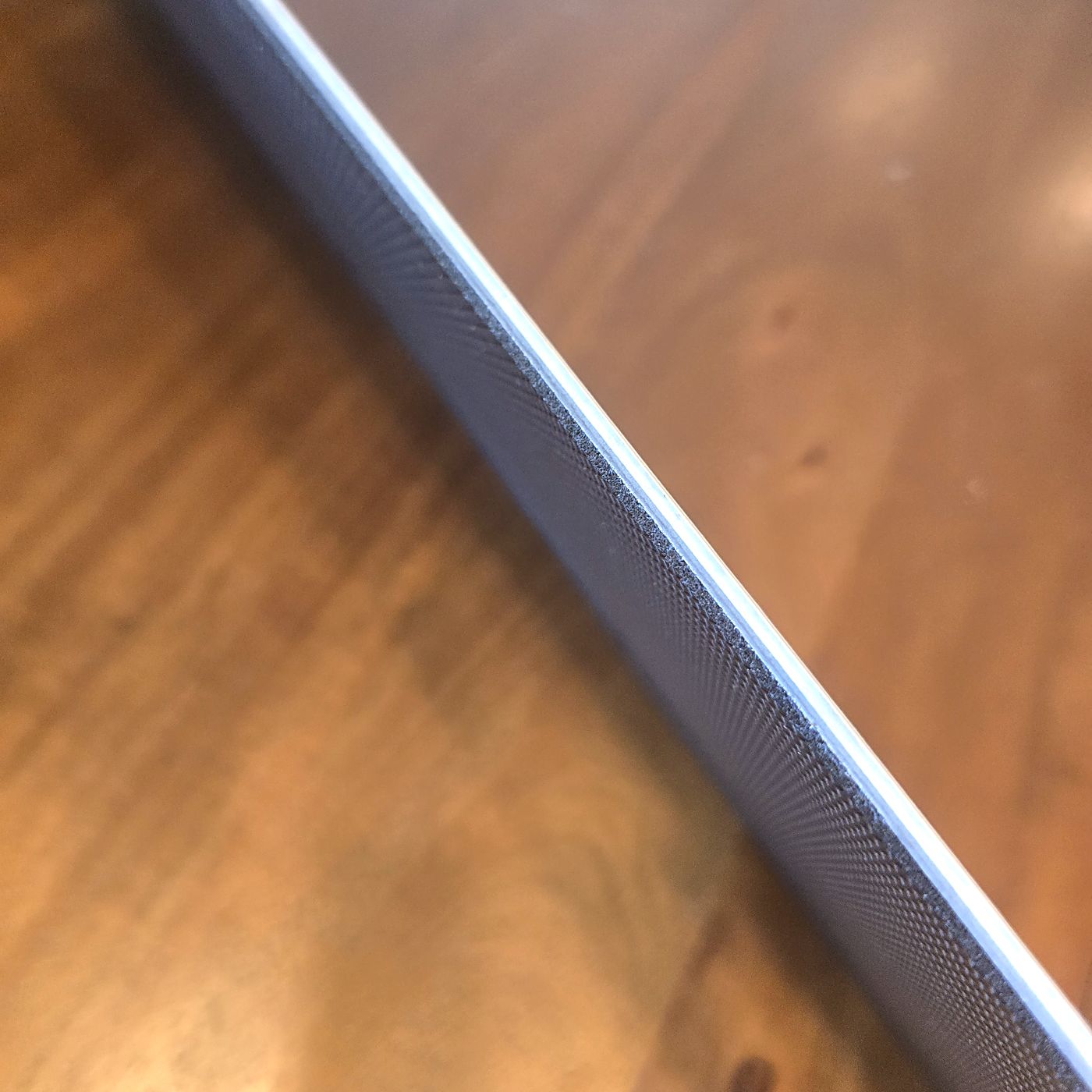

Up Close
Soundstop UpClose
The layer that does the quieting — photographed on the actual plank, not a diagram.
Home / Soundstop Acoustical
Flagship Product Line
BA-cored acoustical LVT with an integrated soundmat — STC 61 / IIC 56 / HIIC 68 on a wood assembly with no separate sound mat. The floor multi-family and hospitality specifiers choose when the assembly has to pass acoustical inspection.
Airborne sound transmission — voices, TV, music — tested on a wood floor assembly with no separate sound mat.
Impact insulation — footsteps and dropped objects — with the acoustic backing attached directly under the wear layer.
High-frequency impact — the metric that best predicts the quiet occupants actually perceive.
Headline results: Soundstop Glue Down, no soundmat, wood assembly. The full certified matrix is below.
Interactive · See & Hear
Click through the Soundstop story at your own pace — and on slide 8, play two certified lab tapping recordings back to back: a floor with a separate underlayment versus Soundstop's built-in soundmat. Same test, audibly quieter. It's why Soundstop hits STC 61 / IIC 56 / HIIC 68 on a wood assembly with no separate sound mat — and passes acoustical inspection.
Prefer to talk it through? Call (512) 503-2106 — we'll read the deck against your assembly.
Up Close
The layer that does the quieting — photographed on the actual plank, not a diagram.
Photo Gallery
Real projects with Soundstop underfoot — multifamily, hospitality, and mixed-use, from lobby to unit.
Colorways
Fifteen wood-look colorways, shared across both Soundstop formats.
Certified Acoustical Test Data
Independent Intertek / B&C laboratory tests (ASTM E90 / E492 / E1007), grouped by the floor-ceiling assembly tested.
| Product | Thickness | Soundmat | STC | IIC | HIIC |
|---|---|---|---|---|---|
| Looselay LVT | 5 mm | None | 60 | 50 | — |
| Soundstop Glue Down | 3 mm | None | 61 | 56 | 68 |
| Soundstop Glue Down | 3 mm | SamN12 | — | 58 | 64 |
| Soundstop Glue Down | 3 mm | SamN12 Ultra | 60 | 59 | 70 |
| SPC Click | 5 mm | None | 61 | 54 | 63 |
| Luxe XL | 5.5 mm | None | 60 | 59 | 68 |
| SPC Click | 5.5 mm | SamN12 / Ultra / ¼″ | 60 | 59 | 68–69 |
| SPC Click | 6.5 mm | SamN12 | 60 | 59 | 69 |
| SPC Click | 6.5 mm | SamN12 Ultra | 60 | 59 | 72 |
| Product | Thickness | Soundmat | STC | IIC | HIIC |
|---|---|---|---|---|---|
| Luxe XL | 5.5 mm | — | — | 61 | — |
| SPC Click | 6.5 mm | — | 53 | 58 | 61 |
Wood truss + gyp-crete: open-web truss with gypsum-concrete topping, R-13 batt insulation, and a resilient-channel 5⁄8″ gypsum-board ceiling. 6″ concrete slab: structural concrete floor-ceiling assembly. Full construction details are available on request.
The Technology

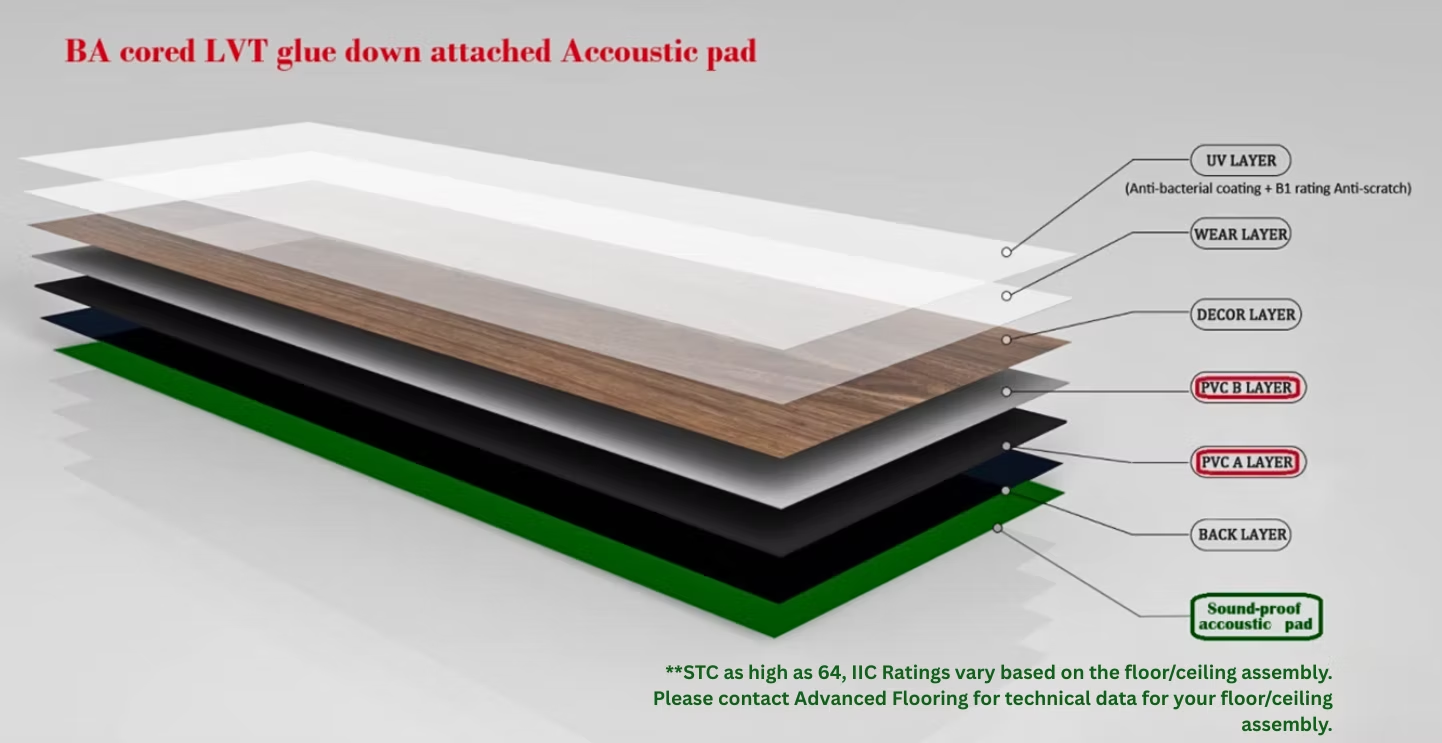

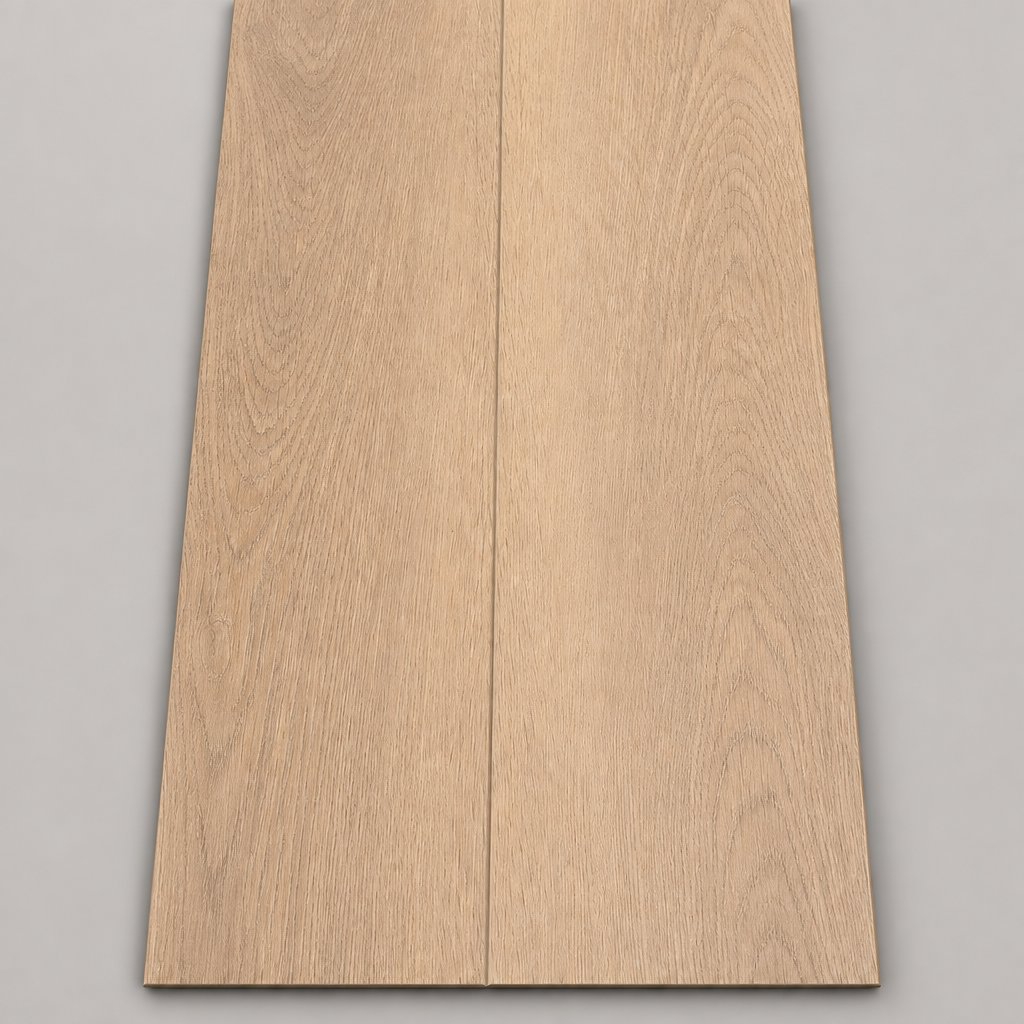

Soundstop uses a BA-cored construction with an integrated acoustic backing, so the sound-dampening layer is bonded to the plank rather than shipped and installed separately. Painted beveled edges give a finished, monolithic look while the core does the acoustic work.
Formats
Soundstop comes in two acoustical formats — both with the soundmat built into the plank. Choose the one that fits the assembly and the install method.
3–5 mm
Bonds directly to the subfloor with the acoustic backing built in. The low-profile choice for slab and gyp-crete assemblies where a permanent glue-down finish is preferred.
5–6.5 mm
A rigid-core floating floor carrying the same integrated soundmat. No adhesive, faster to install, and the thicker builds carry the highest impact ratings.
First-floor cost saver: on ground floors and slab-on-grade — where there's no occupancy below to isolate — we supply a visually matching glue-down LVT without the acoustic core. The floor reads continuously across the building while you only pay for acoustic performance where the code actually requires it.
Have a project with an acoustical requirement? Send the floor plan and we'll match the format, supply the test reports, and quote it wholesale.
Request a Spec EstimateWhere Soundstop Performs
Apartments and condos with unit-to-unit sound requirements between floors.
Hotels and short-term rentals where guest comfort depends on quiet rooms.
High-occupancy residential where footfall noise is a constant complaint driver.
Residential over retail or amenity space, where assemblies must control transmission.
The Complete Story

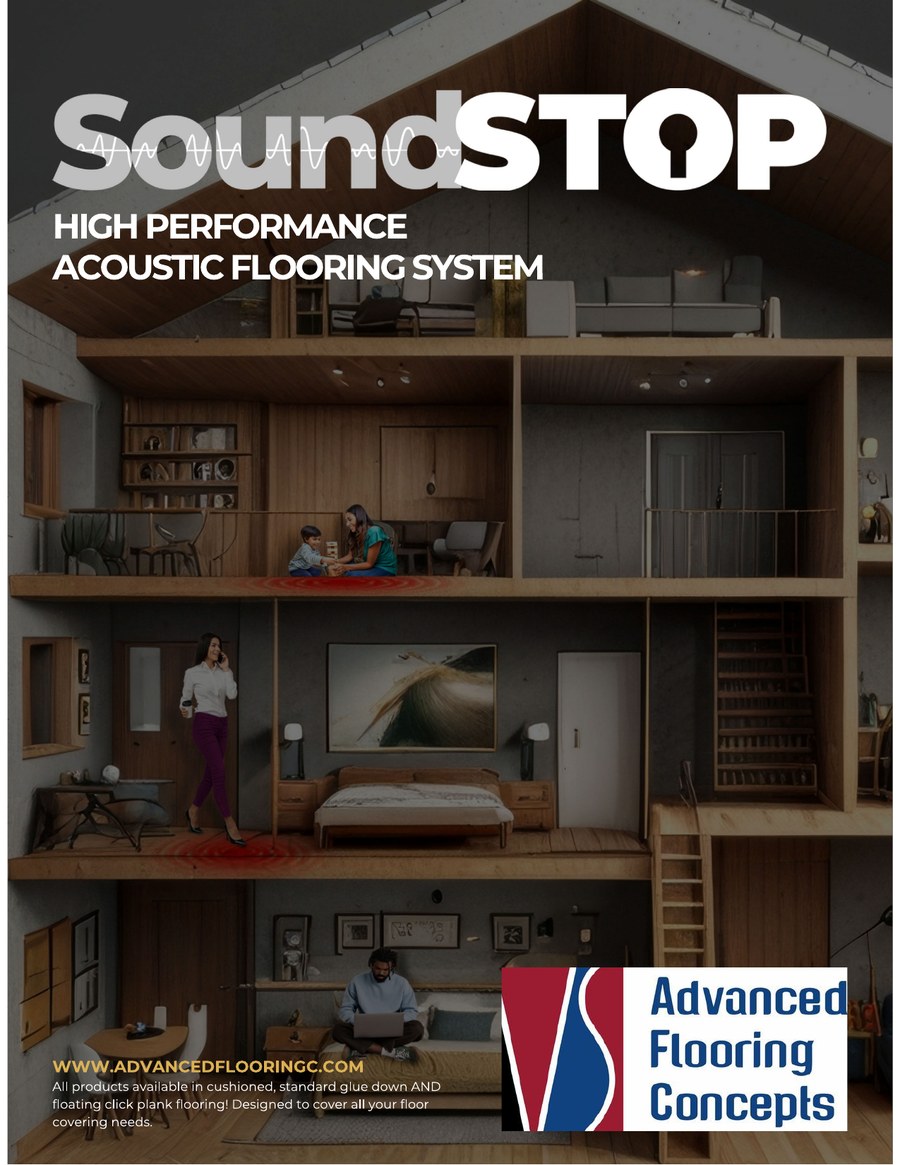

The one-page overview of the Soundstop acoustical system — formats, construction, and where it performs. Click the cover to open the full sell sheet.
PDF Open the Soundstop Sell Sheet
Send the floor plan and the acoustical requirement. We'll match the format, supply the documentation, and quote it wholesale.
